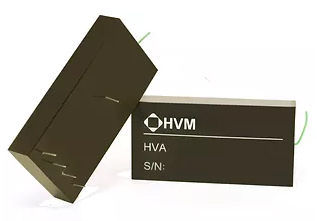

HVM HVA Series

Zero-Crossing Bi-Polar High Voltage Amplifier

• Easy to Use, No External Components Required

• Bipolar, Zero-Crossing HV Output

• Current Sourcing and Sinking

• Fast Response

• Excellent Load and Line Regulation

• 5V or 12V Input Models Available

• Miniature PC Board Mountable Package

• ±1kV, ±3kV, and ±6kV Models Available

• Wide Operating Temp Range (-40°C to +60°C)

HVM SMHV Series

Precision Regulated HV DC/DC Converter

• Models up to 10kV @1W

• Sub-Miniature Case Size (.85”x.85”x.6”)

• 5V Operation

• AdjustableOutput Proportional to 0 - 5V Programming Input

• Tight Output Regulation

• Very Low Quiescent Current

• Output Current Limiting

• Output Voltage and Current Monitors

• Wide Operating Temp (-55C to +70C)

HVM UMHV Series

Precision HV DC/DC Converter

• Ultra-Miniature Case Size (0.5” x 0.5” x 0.5”)

• High Impedance Programming Input (10kΩ)

• Extremely Low Quiescent Current (5mA typical)

• No External Components Required

• PCB Mountable

• Low Ripple and EMI/RFI

• High Input/Output Isolation

• Wide Operating Temp Range (-55°C to +70°C)

• Available in positive or negative outputs

UMHVP Series

High Voltage DC to DC Converter
Proportional to the Output

• Ultra-Miniature Case Size (0.5” x 0.5” x 0.5”)

• High Impedance Programming Input (10kΩ)

• Extremely Low Quiescent Current (5mA typical)

• No External Components Required

• PCB Mountable

• Low Ripple and EMI/RFI

• High Input/Output Isolation

• Wide Operating Temp Range (-55°C to +70°C)

• Available in positive or negative outputs

nHV Series

Precision Regulated HV DC/DC Converter

• Ultra-Miniature Case Size (.45”L X .35”W X .37”H)

• Surface Mountable Package

• 100mW Output Power Capability

• Extremely Tight Output Regulation and Stability

• High Impedance Programming Input (>100kΩ)

• Low Quiescent Current

• No External Components Required

• Extremely Low Ripple and EMI/RFI

• Wide Operating Temp Range (-55°C to +70°C)

RK Series

High-Precision Regulated HV DC to DC Converter

• Miniature Size (1.40”L x 1.10”W x 0.50”H)

• Easy to Use, No External ComponentRequired

• Excellent Load and Line Regulation

• Extremely Low Quiescent Current

• Miniature PC Board Mountable Package

• Low Ripple and EMI/RFI

• High Impedance Programming Input (>75kΩ)

• Wide Operating Temp Range (-40°C to +60°C)

SK Series

Miniature High Voltage DC to DC Converter

• Miniature Size (1.75”L x 1.10”W x 0.50”H)

• Easy to Use, No External Components Required

• Excellent Load and Line Regulation

• Extremely Low Quiescent Current

• Miniature PC Board Mountable Package

• Low Ripple and EMI/RFI

• High Impedance Programming Input (>75kΩ)

• Wide Operating Temp Range (-40°C to +60°C)

HVM OR-100-05

10kV High Voltage Opto-Relay

• Easy to Use

• No External Components Required

• Internal Current Limiting Resistors

• Small Footprint

• ±10kV Voltage Rating

• Fast Response

• Miniature PC Board Mountable Package

• Wide Operating Temp Range (-40°C to +85°C)

OR-100-05

10kV High Voltage Opto-Relay

• Easy to Use

• No External Components Required

• Internal Current Limiting Resistors

• Small Footprint

• ±10kV Voltage Rating

• Fast Response

• Miniature PC Board Mountable Package

• Wide Operating Temp Range (-40°C to +85°C)

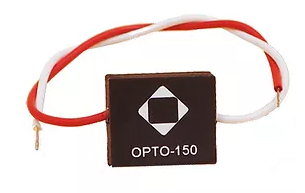

OPTO-150

15kV High Voltage Opto-Coupler

• Easy to Use

• No External Components Required

• Internal Current Limiting Resistors

• Small Footprint

• 15kV Reverse Voltage Rating

• Fast Response

• Miniature PC Board Mountable Package

• Wide Operating Temp Range (-40°C to +85°C)
